How Many Ground Control Targets Do You Need for Drone Mapping?
Share
A Practical Guide for Surveyors, UAS Operators, and Geospatial Professionals
When planning a drone mapping mission, one of the most common questions is:
"How many ground control targets do I need?"
The answer is not always straightforward. The number of targets required depends on project size, site geometry, terrain, desired accuracy, flight altitude, and whether the project utilizes Ground Control Points (GCPs), Check Points (CPs), RTK, or PPK workflows.
Deploying too few targets can reduce confidence in your final deliverables. Deploying too many targets can result in unnecessary field time, increased labor costs, and diminished efficiency.
This guide provides a practical framework to help determine the appropriate number of targets for your next drone survey while maximizing both accuracy and productivity.
Why Ground Control Targets Matter
Ground control targets provide clearly identifiable points within drone imagery that can be tied to accurately surveyed coordinates.
These targets serve several critical purposes:
- Improve horizontal accuracy
- Improve vertical accuracy
- Reduce systematic distortion
- Validate photogrammetric results
- Support quality assurance and quality control
- Increase confidence in deliverables
Whether you're producing:
- Topographic maps
- Orthomosaics
- Digital terrain models
- Construction progress surveys
- Volume calculations
- ALTA support mapping
- Corridor mapping
Ground control remains one of the most effective ways to achieve reliable geospatial results.
Quality Control Starts Before the Flight
Many mapping errors originate long before processing begins.
Common issues include:
- Targets concentrated in one area
- Insufficient perimeter coverage
- Poor visibility from flight altitude
- Targets placed on unstable surfaces
- Inadequate interior control
- Not accounting for elevation changes
The objective is not simply increasing target quantity.
The objective is creating a control network that effectively constrains the project area.
Think of targets as anchors. The better distributed those anchors are, the better the final model can resist distortion.

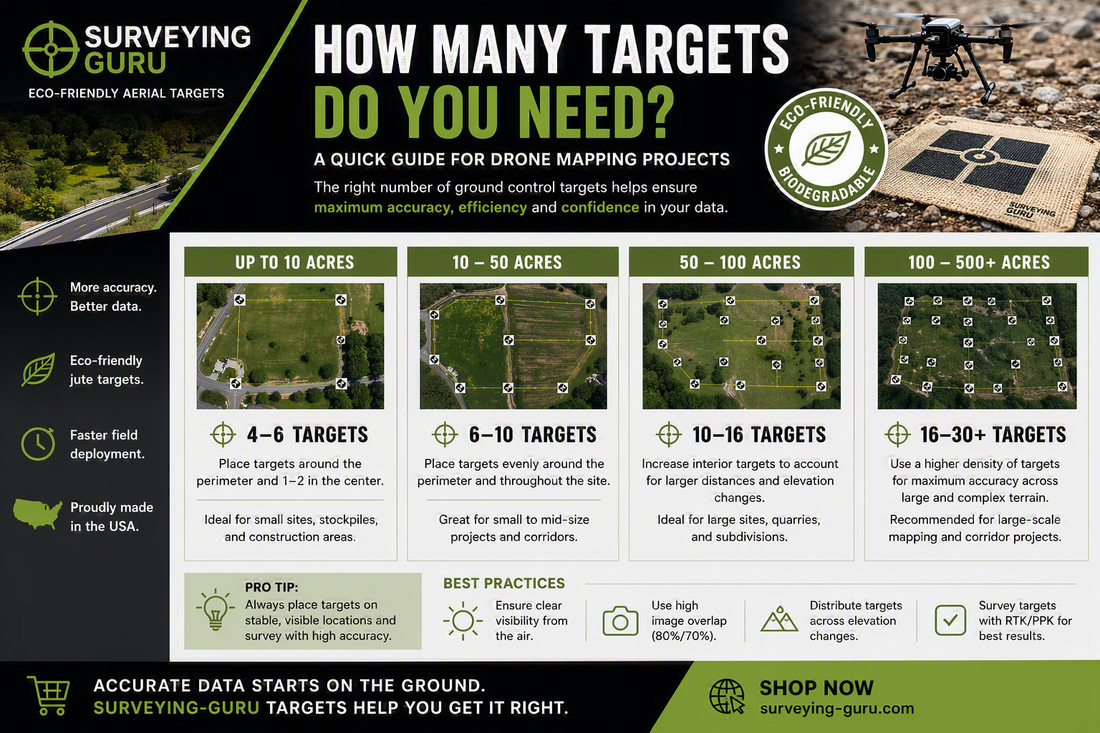

Recommended Target Quantities by Site Size
Projects Up to 10 Acres
Recommended:
4–6 Targets
Ideal for:
- Small construction sites
- Stockpile calculations
- Localized topographic surveys
- Small development projects
Placement Strategy
Position targets:
- Near each corner
- Along the site perimeter
- One or two targets near the center
This configuration normally provides adequate control while keeping deployment time minimal.
Pro Tip
Avoid clustering all targets around site access points. Control should surround the project rather than sit on one side.
Projects Between 10 and 50 Acres
Recommended:
6–10 Targets
Ideal for:
- Residential developments
- Utility projects
- Solar sites
- Small roadway projects
Placement Strategy
Include:
- Complete perimeter coverage
- Several interior targets
- Additional control at changes in terrain
As site dimensions grow, perimeter-only control becomes less effective.
Interior targets help maintain consistency throughout the project area.
Typical Layout
A combination of:
- Corner targets
- Mid-point perimeter targets
- Two to four interior targets
typically provides reliable results.
Projects Between 50 and 100 Acres
Recommended:
10–16 Targets
Ideal for:
- Large subdivisions
- Land development projects
- Mining operations
- Quarry surveys
Placement Strategy
At this scale, project geometry becomes increasingly important.
Consider:
- Additional interior targets
- Targets at elevation changes
- Coverage around irregular site boundaries
Long distances between targets increase the opportunity for localized distortion.
Increasing target density helps maintain accuracy across the entire site.
Common Mistake
Many operators only increase perimeter points while neglecting the interior.
Large projects require both.
Projects Between 100 and 500+ Acres
Recommended:
16–30+ Targets
Ideal for:
- Corridor mapping
- Large infrastructure projects
- Utility transmission corridors
- Environmental monitoring
- Regional mapping programs
Placement Strategy
Large projects benefit from:
- Distributed perimeter targets
- Regularly spaced interior targets
- Additional checkpoints
- Extra control at major terrain transitions
The larger and more complex the site becomes, the more valuable strategically placed control points become.
For corridor projects, additional targets should be distributed throughout the alignment rather than concentrated at project ends.
Target Placement Best Practices
Regardless of project size, proper placement is often more important than the total number of targets.
1. Create a Strong Perimeter
The perimeter acts as the framework for the project.
Targets should be distributed near:
- Corners
- Boundary limits
- Project extents
This helps constrain the entire dataset.
2. Add Interior Control
Interior targets help:
- Reduce distortion
- Improve consistency
- Strengthen block adjustments
Large gaps between targets can allow localized errors to develop unnoticed.
3. Consider Elevation Changes
Projects with:
- Hillsides
- Ravines
- Embankments
- Stockpiles
often require additional control points.
Changes in elevation introduce complexities that can affect model performance.
4. Ensure Visibility
Targets should be:
- High contrast
- Flat
- Clearly visible
- Free of shadows
- Unobstructed by vegetation
A target that cannot be clearly identified in imagery provides little value during processing.
5. Use Independent Checkpoints
Ground control and quality assurance are not the same thing.
Always consider including checkpoints that are not used during processing.
Checkpoints provide independent verification of project accuracy.
RTK and PPK: Do You Need Fewer Targets?
Modern drone platforms increasingly use:
- RTK (Real-Time Kinematic)
- PPK (Post-Processed Kinematic)
These technologies often reduce the number of required ground control points.
However, they do not eliminate the need for validation.
Even with highly accurate onboard positioning:
- Checkpoints remain important
- Large projects still benefit from distributed control
- Accuracy should always be verified
Many professional workflows use a hybrid approach combining RTK/PPK with strategically placed targets and checkpoints.
Why Surveyors Are Switching to Eco-Friendly Jute Targets
Traditional painted targets and temporary site markings often create challenges.
Surveying-Guru's eco-friendly jute aerial targets offer several advantages:
Fast Deployment
Crews can deploy targets quickly without painting or surface preparation.
Portable
Lightweight construction makes transportation simple.
Highly Visible
Designed to stand out in aerial imagery.
Environmentally Friendly
Jute construction provides a more sustainable alternative to disposable materials.
Professional Appearance
Consistent target shapes improve image identification during processing.
Final Thoughts
There is no universal number of targets that works for every mapping project.
The best approach is to consider:
- Project size
- Terrain
- Site complexity
- Accuracy requirements
- Flight methodology
As a general guideline:
| Project Size | Recommended Targets |
|---|---|
| Up to 10 Acres | 4–6 |
| 10–50 Acres | 6–10 |
| 50–100 Acres | 10–16 |
| 100–500+ Acres | 16–30+ |
Remember: strategic placement almost always matters more than simply adding more targets.
The goal is accurate, repeatable, and defensible survey data—not just a larger target count.
When properly deployed, ground control targets help ensure your drone mapping project delivers the accuracy, confidence, and quality your clients expect.
